Epoxy Coated Pipe

Product:Liquid epoxy coating pipe
Application: Used for natural gas, petroleum, water & sewage, and pipe systems
Standard:AWWA C210
Size:60.3mm-2540mm
End:Plain End/Bevelled End, Burr Removed

+86 17865557227

Phone

Info@shandongbaosteel.com

E-mail

Application Field

Product message

Product Details

Description

The anti corrosion coating can be used for ERW/LSAW/SSAW pipe,straight seam pipe,seamless steel pipe,etc.And the coated pipes are widely used in pipeline projects in the field of petroleum,chemical, natural gas,heating,sewage treatment,water,bridges,steel structures,piling and other marine water.

Standard		API 5L
Grade	PSL-1	API 5L – Gr.B/X42/X46/X52/X60/X70 etc.
( Material)	PSL-2	ISO3183 – L245/L290/L320/L360/L415/L485 etc.
Minimum Order Quantity		1 Ton
Outside Diameter Ranges	PSL-1	0.405-80(in) or 10.3mm-2032mm
	PSL-2	4 1/2 -80(in) or 114.3mm-2032mm
Wall Thickness Ranges		SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm
Length		For 20Ft Container	4.8m-5.8m
(negotiable)		For 40Ft Container	4.8m-12m
		Most common choice	6m, 12m
Type	Welded	ERW,LSAW/SSAW
	Seamless	Cold Drawn,Hot Finished,Hot Expanded
Cap (negotiable)		Pipe size should under DN600
Pipe End	Plain end	All sizes
	Bevel end	Pipe size above DN50, and the thickness should greater than 3.2mm
Our advantages		·Diverse products(Steel pipes, pipe fittings, other fittings)
		·Any third party inspection is accepted by we company.
		·Quick response in quotation,delivery,after-service.
		·Focus on pipe & tube solution for project application.

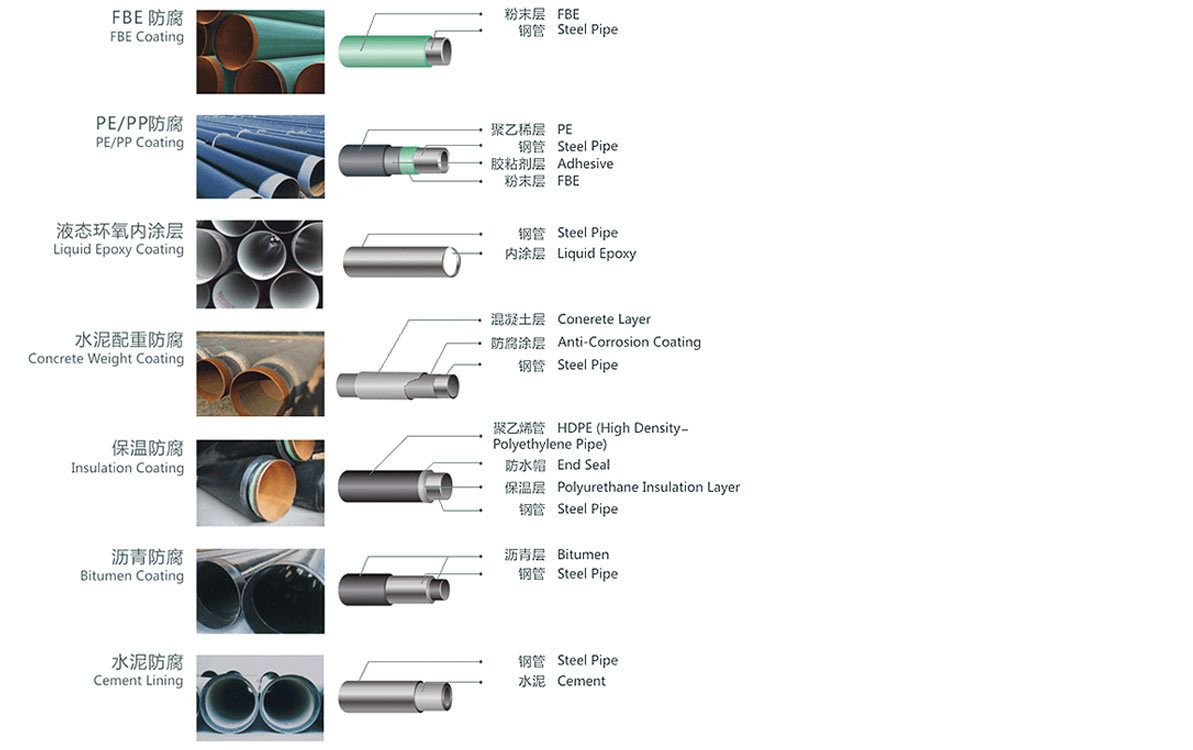

External Coating
Coating type	Coating Standard
3LPE/3LPP	DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009
2LPE/2LPP	SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009
FBE(Fusion-bond epoxy)	SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001
Bitumen coating Enamel &Tape hot-applied	BS534-1990,AWWA203-2002,AWWA214-2000
Liquid epoxy coating	AWWWA C210-2007
Polyurethane insulated coating	SY/T0415-1996,CJ/T114-2000.EN253-1994

Internal Coating
Liquid Epoxy Coating	AWWAC210-2007
FBE	AWWAC213-2001
Cement Mortar Lining	BS534-1990,AWWA C205-2001
Bitumen Coating	BS534-1990

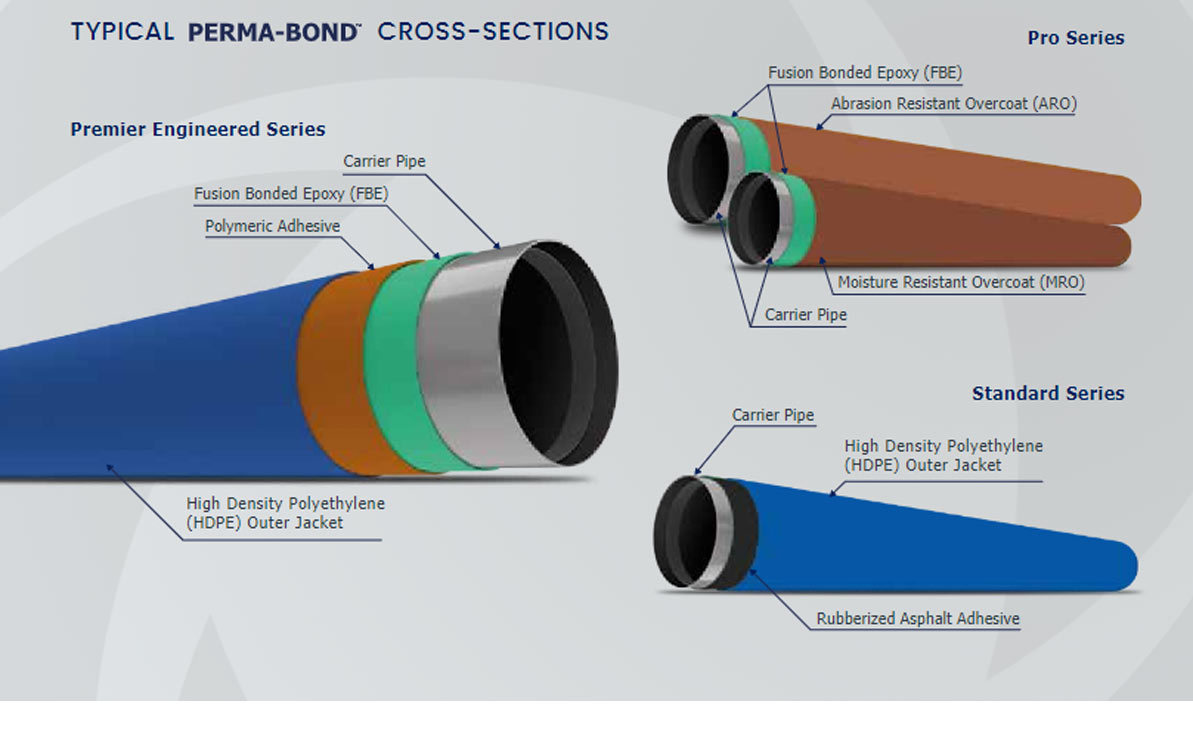

Specification&Standard

Coating Type	Coating Layer	Coating Thickness
Three layers polyethylene	Inside layer: epoxy (Green)	2.0-4.5mm
	Mid layer: adhensive (White)
	Outsidelayer:polyethylene (Black)
Two layers polyethylene	Inside layer: adhensive	2.0-4.5mm
Two layers polyethylene	Outside layer: polythene	2.0-4.5mm
Epoxy	Epoxy	200-400um
Two layers epoxy	Inside layer: expoxy (Green)	400-800um
Two layers epoxy	Outside layer:intensity epoxy (sage green)	400-800um
Three layers polyethylene	Inside layer: expoxy (Green)	2.5-3mm

AWWA C203: Coal-Tar protective coating and lining for steel water pipelines

AWWA C205: Cement mortar protective lining and coating for steel water pipe

AWWA C210: Liquid-Epoxy Coating system for interior and exterior of steel water pipeline

AWWA C213: Fusion-Bounded Epoxy coating for interior and exterior of steel water pipeline

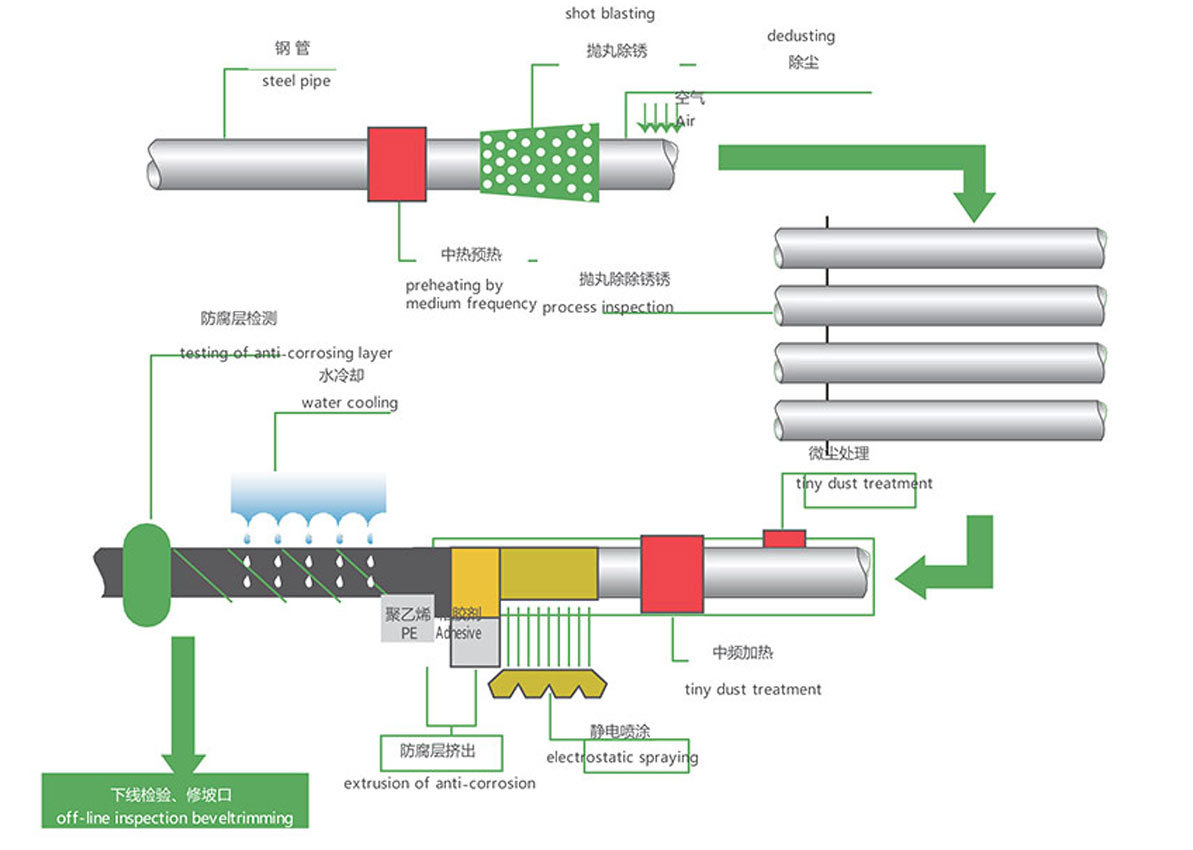

Process

Packing

Bundled package

On bundle of steel tube shall be the same in batch number, steel grade and specification.the rest of tubing less than one bundle should be tied into small bundles.

The weight of each bundle should be less than 50kg.The max weight cannot exceed 80kg of the bundle If there are special requirements.

When the length of the steel tube is greater than or equal to 6m, with at least 8 strapping bands for each bundle, divided into 3 groups and 3-2-3.

When the length of the steel tube is less than 6m, and each bundle is tied at least 5 knots and divided into 3 groups, which are 2-1-2.

When the length of the tube is greater than or equal to 3m, and each bundle is tied with at least 3 bands, divided into 3 groups, 1-1-1 showed below

Wooden box package

The wooden box is suitable for cold rolling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.

When the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.

When the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.

key word : Seamless Steel Pipe

APPLICATION FIELD

That apply to engineering, coal mine, textile, electric power, boiler, machinery, We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your Inquiry and we will come back to as soon as possible.
